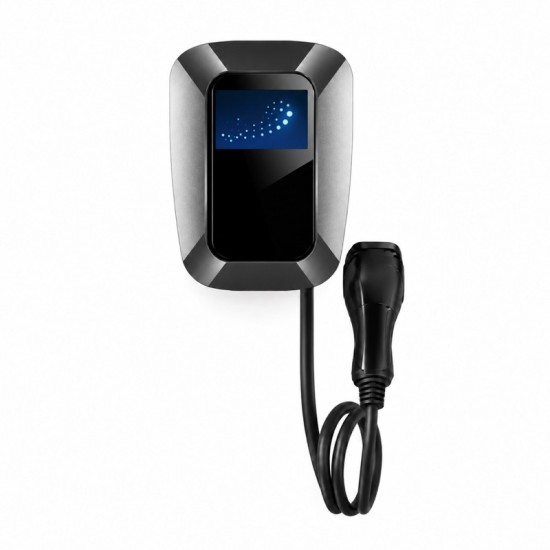

AC wall charger, model 08

AC wall charger model 08 for homes, businesses and car parks. Available with a 4.3-inch display or without a display. RFID operation or Plug and Play mode. The standard cable is 3 m long, with other lengths available after confirmation. Confirmed specifications: • rated current: 32 A • operating temperature: -30°C to +50°C • storage temperature: -40°C to +80°C • controller protection rating: IP66 • connector protection rating when connected: IP55 • flame-retardant housing and copper conductor • dimensions: 300 × 210 × 96 mm • warranty: 2 years • colours: silver, gold, grey or black How do I choose the charger power? Check the vehicle manual or settings for its maximum AC charging power. Choose a 7.4 kW charger for a vehicle that accepts up to 7.4 kW AC, an 11 kW charger for 11 kW AC, or a 22 kW charger for 22 kW AC. A higher-powered charger will not charge the vehicle faster if the vehicle has a lower limit. We confirm the connector type separately according to the vehicle inlet. Before purchase, provide the make, model, year, maximum AC charging power and inlet type. The electrical installation must be checked by a qualified electrician.
